Commercial Brake Tester - VTEQ Brake 7100

Autoworkshop Equipment

Commercial Roller Brake Testers

For buses, coaches, HGV, light commercial and passenger cars

Commercial Brake Tester Specialists
Auto Workshop are leading independent commercial brake tester suppliers. We offer a range of roller brake testers to suit the commercial vehicle and ATF market.

Auto Workshop provides a total package. This includes if required a site survey and drawings for DVSA approval, delivery and installation of equipment, civil works (optional) and all necessary certification and on going calibration and maintenance service.

VTEQ 7100 Commercial Brake Tester

DVSA Approved Heavy & Light Duty Vehicle Roller Brake Tester

VTEQ take special care in the selection of materials and processes for the manufacturing of the 7100 commercial brake tester. Aware of the importance of durability in this type of equipment, the VTEQ range of heavy duty vehicles is especially suitable for intensive use and high wear resistance.

Main Features

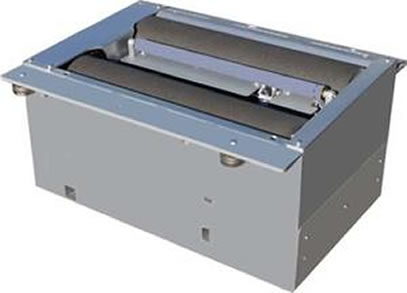

  • CVBT 18T HGV Roller Bed
  • Electronic Box

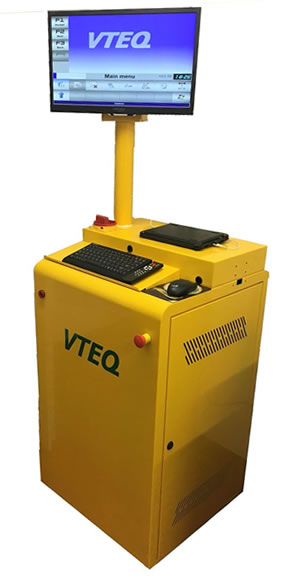

  • PC Cabinet etc
  • Vehicle Weighing
  • Bi-directional Kit
  • UK Motor Brake - Roller Lock
  • 4 x 4 Kit
  • Soft Start
  • Central Cover

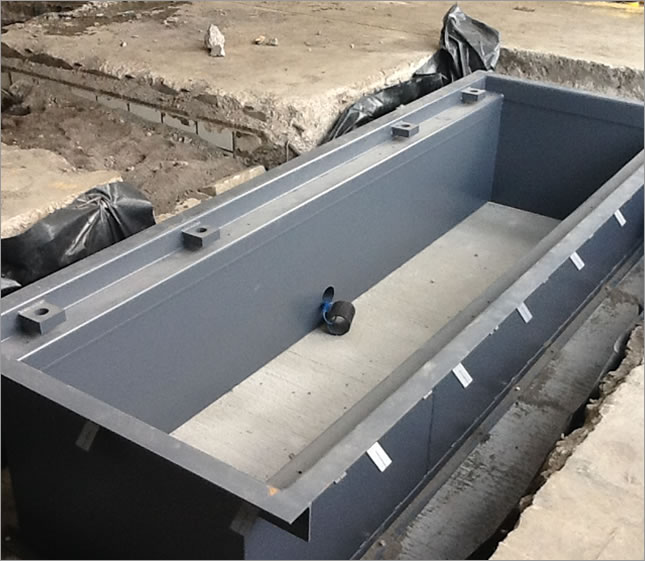

  • Metallic Pit Frame D12-A71002-2
  • Second TFT Monitor or PDA/Tablet
  • DVSA Approved
  • GEA Approved
  • 3 Warranty
Technical Specification
  • Dimension 2 x 1140 x 1427 x 650mm
  • Maximum Axle Load 18000kg
  • Roller Diameter 265mm
  • Roller Axle Separation 484mm
  • Test Speed 3KM/H
  • Motor Power 2X11.0 KW
  • Roller Friction Dry>0.8 Wet >0.6
  • Measurement Range 0-4000kg
  • PC based system for data processing
  • Optional VOSA Database
  • Manual or automatic operating
  • Quick and exact results displayed
  • Keyboard for input vehicle data
  • Monitor head for swivel support 22
From £25,495.00 + VAT
5 Year Lease Price From £129.95 + VAT per week
